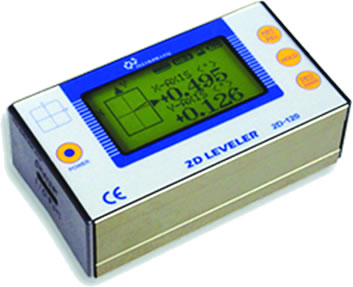

2D-Precision Incline Level

[ Model:2D-120 ]
2D-Precision Incline Level
  • It can display 2 types of measurement units, 00.000° (Angle) and 000.00mm/m (Flatness/Gradient).
  • Using a button it is possible to select 2 types of easurement modes; [Absolute Measurement] and [Comparative Measurement]. Also it is possible to hold (Lock) the value.
  • Levelness adjustment (Absolute Levelness) can be easily performed using a button (Caliberation function is embedded).
  • Power is supplied from an embedded rechargable battery.
  • It can be used for a variety of applications like installtion of precision equipment, inspection measurement, angle/gradient measurement at construction sites, etc.

2D-PRECISION INCLINE LEVEL

New product that can meassure and display
both X and Y Axis simultaneously.

  • Multipurpose product including angle gauge and level gauge functions.
  • Easy to read numerals and incline direction specification mark display.
  • It is compact and designed for eas of use.
  • Zero standard can be determined by simple operation and Zero setting can be performed with an aribitrary angle.

*Minimum Reading unit : 0.003 degrees or 0.05 mm/m

Main Features

  • X Axis and Y Axis values can be measured and checked simultanously.

X-X, and Y-Y direction values can be measured and checked simultanously. Because zero setting can be performed on any arbitrary position, [Comparative measurement] can also be performed.

  • Values are displayed on a large easy to read LCD. tilt direction is displayed graphically.

Display Example


marks indicate the tilt direction.

  • 2 types of measurement units 00.000° (angle) and 000.00mm/m (horizontal/gradient) can be displayed.
  • Using a button it is possible to select 2 types of easurement modes; [Absolute Measurement] and [Comparative Measurement]. Also it is possible to hold (Lock) the value.
  • Levelness adjustment (Absolute Levelness) can be easily performed using a button (Caliberation function is embedded).
  • Power is supplied from an embedded rechargable battery.
  • It can be used for a variety of applications like installtion of precision equipment, inspection measurement, angle/gradient measurement at construction sites, etc.

Specifications

Code No. AY901 Reference
Name 2 Axis Incline Level 1 ) When using this instrument as a level, It is possible to display values more than the ±34.9mm/m shown on the left. However, this is the recommended value.

2 ) The battery can be used for 6 hours after a full charge, However this period may vary due to the use environment.

3 ) Due to product improvement, the appearance and specifications of this product may change without notice.

Model 2D-120 Type
Measurement Range Both X, Y Axis ±27°, ±34.9mm/m
Resolution Both X, Y Axis 0.003°, 0.05mm/m
Power Rechargable lithium polymer battery.
External Measurement 125L×70W×40mmH
Housing Aluminium, Hard alumite surface treatment.
Weight About 550g
Case Enclosure Portable type solid plastic
Attachments Special AC Adapter
