Steel Beam Trammel with Graduation (Production example)

[ Model:STEEL BEAM TRAMMEL ]

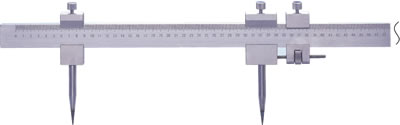

Steel Beam Trammel with Graduation (Production example)
  • Use for marking, measurement, large type compass etc.
  • The beam has 1mm interval graduation.
  • The beam is hardened steel and so can also be used as a straight edge.
  • Comes micro motion instrument for adjustment
Nominal Measurement Measurement
(L×W×tmm)
Needle Lenght
(mm)
Weight
(kg)
300 400×27×6 70 1.0
500 600×27×6 70 1.4
1000 1100×30×6 80 2.2
1500 1600×30×6 80 3.0
2000 2100×40×8 120 6.5
3000 3100×50×10 120 9.0
