Large Precision Surface Plate

[ Model:PRECISION SURFACE PLATE ]

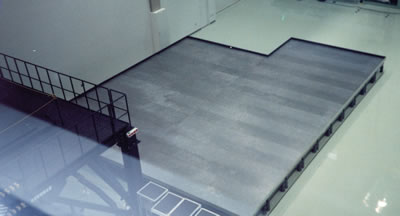

Large Precision Surface Plate

Outline

Surface plcate for precision operation test of manipulator (arm) used in space station assembly.
The test is performed in a vibration-free clean room independent footing using air levitation method. Therefore all the surface Plate juctional parts
are specially processed to avoid air leakage.

Specification Outline

Dimension 12.5×10m (18 pcs combined)
Flatness JIS-Grade 1 (scrape finishing)
Adjacent Step 0.015mm
Surface Plate Gorss Weight about 80t.
Surface Plate Material FC300

Other products of Surface Plates
