Bench Centers (P-Type)

[ Model:BENCH CENTERS (P-TYPE) ][ Stock No:312 ]

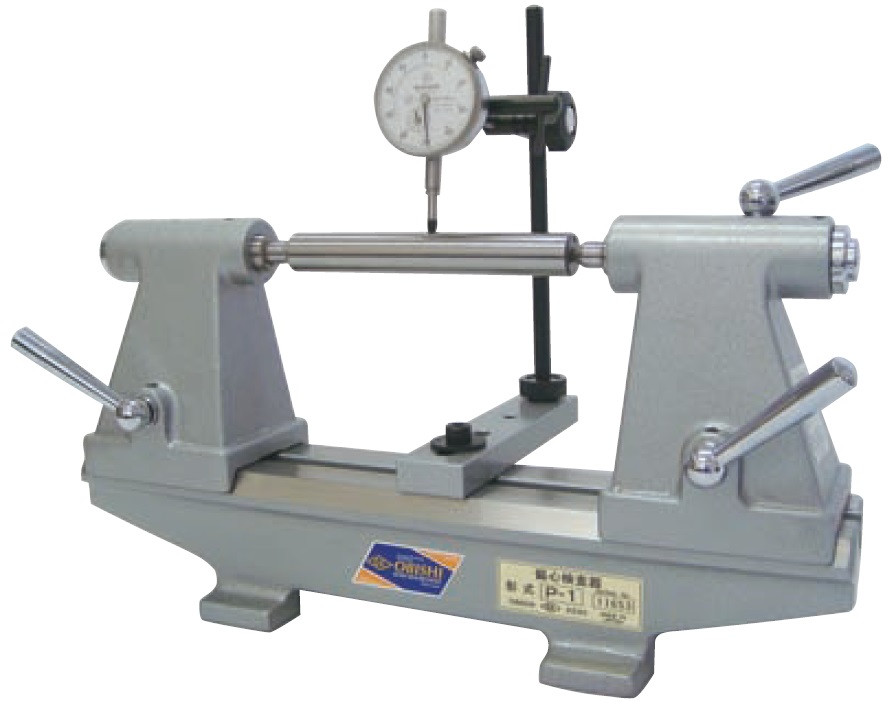

Bench Centers (P-Type)
  • Small sized type of standard model tester.
  • Used for eccentricity and deflection Measurement of shafts, etc.
  • Parallellism between table upper surface and center is assured.
  • Center entry/exit is performed by one touch lever.

*According to your requirement, we can manufacture variations with carbide center or brolly center.
*Dial gauge and test bar are not included.

Code No. Model Full Lenght
(Lmm)
Center Distance
(mm)
Center Height
(mm)
Use Center Height
Parallellism
(μm)
Weight
(kg)
SAP101 P-1 410 150 110 MT#1 5 14.0
SAP102 P-2 470 200 15.5
SAP103 P-3 560 300 17.0
