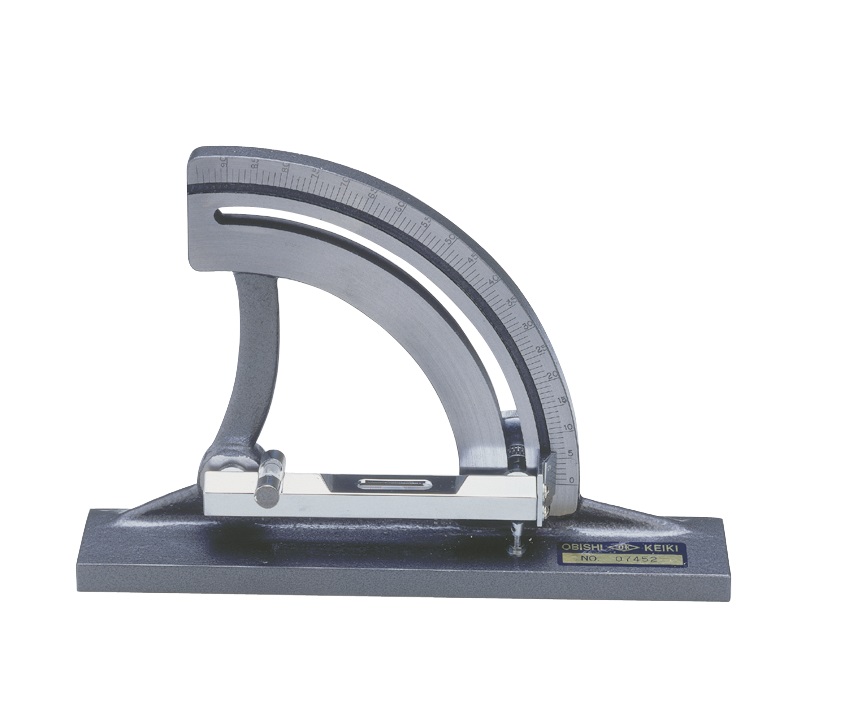

Inclination Level  882A

[ Model:INCLINATION LEVEL 882A ][ Stock No:503 ]
Inclination Level  882A
  • Level for Inclination Measurement
  • When the bubble is matched to the center of the graduation line, the angle is read from between the main body number of degrees graduation and vernier
  • In order to perform accurate measurement, a wide bubble chamber is provided.
Code No. Model Measurement
(base ×H mm)
Measurement Range
(degrees)
Minimum Reading
(Arcmin)
Weight
(kg)
AK101 45° 250×44×140 45 12 2.7
AK102 90° 250×44×170 90 12 3.0

Other products of Levels
